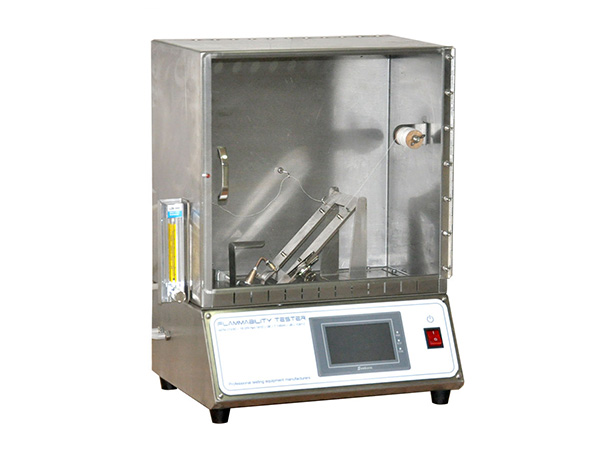

XHF-19B Fabric 45 Degree Flammability Tester
Product Category：Flammability Tester
45 Degree Flammability Tester is used to measure the damaged area and length to the textile, the flame contact times when the textile has been heated and fused to the stipulated length under 45°conditions. PLC control, big color touch screen operation, box and clamp material is made of stainless steel.
ASTM D1230, FTMS 191-5908, CRF 16-1610, ASTM F2100
Time Display and accuracy | 0-999.9S, 0.1s |
Igniting time | 1 S+/-0.05s |
Dimension of chamber | 370mmX220mmX350mm |
Specimens clamp inside dimension | 152×38mm |
Dimension of specimen | 50mmx150mm |
Timing | PLC controlled |
System and Display | Programmable PLC system to control automatically, text display |
Dimension | 420mmx260mmx520mm |
Weight | 25Kgs |
Power Supply | 220 /110 V 50/60 Hz 2 A |
