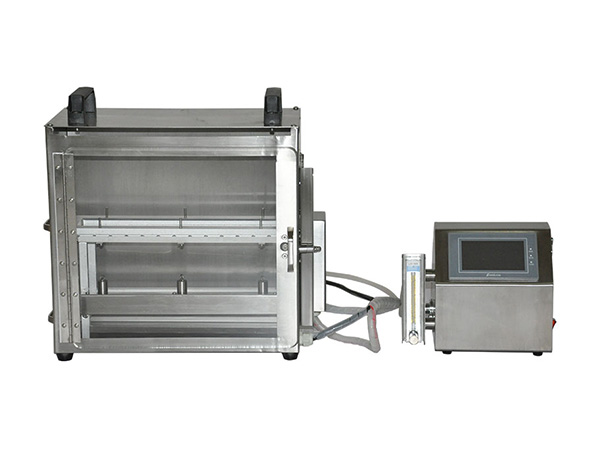

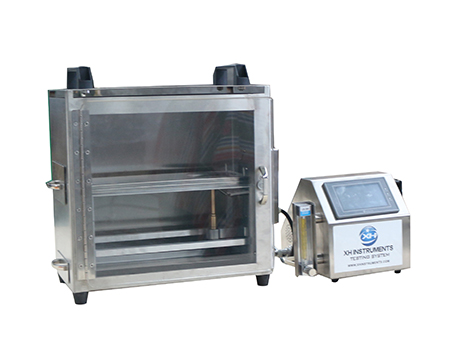

XHF-19E Horizontal Flammability Tester

Product Category：Flammability Tester

 Click to find us  Contact us

Share:   

Product Description

Horizontal Flammability Tester is used to determine textiles, especially automotive interior fabric relative combustion rate and flame resistance. Automobile interior materials flame retardant properties in the failure and non-normal state.

Test Standards

ISO 3795, JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW3232

Product Features

1. Big color touch screen operation.

2. Automatic ignite

3. Automatic timing

Technical Parameter

Dimension of test chamber	381x203x356mm
Sample Clamp	U shape, inside: 330mmx50mm
Specimen	356x100mm, thickness not more than 13mm
Fire mouth	Inner diameter 9.5mm
Flame height	38mm adjustable
Dimension	570x260x370mm
Weight	28kgs
Power Supply	AC 110V/220V, 50Hz/60Hz
