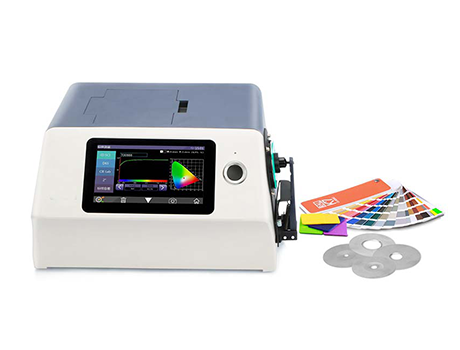

XHY-45 Benchtop Color Spectrophotometer
Product Category：Gloss and Color Tester
XHY-45 Benchtop Color Spectrophotometer has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes it ideal for color analysis within R&D and laboratory environments.
CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Concave Grating.
2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp.
3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.
4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: φ25.4mm//8mm/4mm. Users also can customize apertures.
5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.
6, Wavelength range 360nm – 780nm. Built-in 400nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.
9, Multiple accessories, sample holders, fixation clamp, suitable to more working condition.
10, Big capacity data storage, for 20000 pieces test result.
11, Built-in camera locating.
12, More powerful extended functions at the PC software.
Optical Geometry | Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) |
Specular Component | Reflectance: SCI&SCE |
Integrating Sphere Size | Φ 154mm |
Sensor | 256 Image Element Double Array CMOS Image Sensor |
Light Source Device | 360nm-780nm Combined LED Lamp, 400nm cut-off, UV Lamp |
Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
Spectrophotometric Mode | Concave Grating |
Observer Angle | 2° & 10° |
Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) |
Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 |
Wavelength Range | 360-780nm |
Wavelength Pitch | 10nm |
Semiband Width | 10nm |
Reflectance Range | 0~200% |
Measuring Aperture | Reflective: Φ25.4mm/Φ8mm/Φ4mm; |
Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy |
Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
PC Terminal Software | SQCX |
Data Storage Capacity | Standard: 2000 Pcs; Sample: 20000 Pcs. |
Data Port | USB |
Locating Method | Camera Locating |
Measurement Mode | Single Measurement & Average Measurement |
Screen | 7" TFT Capacitive Screen-touch Display |
Light Source Device Life | 5 years, more than 3 million times measurements. |
Power Supply | DC 24V, 2A Power Adapter |
Size | 370×300×200mm |
Weight | 9.6kg |
Language | English & Chinese |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
Standard Accessory | White Calibration Board, Black Clavity, Sample Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software |
Optional Accessory | Micro-printer, Transmissive Test Clamp Component |
