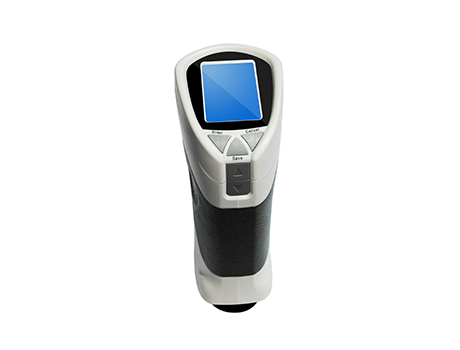

XHY-41 Photoelectric Colorimeter
Product Category：Gloss and Color Tester
Photoelectric Colorimeter is widely used in color measurement of plastic, clothing, textile, leather, household, architecture and interior decoration and many other fields of materials and products surface.
Display color values by lab, RGB, ΔL*a*b, ΔL*C*h, display the difference values of sample and tested item by ΔE*abm ΔL*, Δa*, Δb*, ΔC*, Δh, browse Yxy color space figure.
Use humanized design, friendly graphical user interface.
1000 test records storage, data storage structure: 10 samples and 100 data groups for each sample.
Data browse
Sings for low battery and full memory.
USB communication.
It can print the result by connecting with micro printer.
Optical System | 8/d（8°lighting/diffusion），Specular reflection light included（SCI） |
Measuring Aperture | About Φ8mm |
Display Mode | Colority Value : L*a*b, L*c*h, ΔE*ab, XYZ, with respect to RGB; Color Difference : Δ( L*a*b),Δ(L*C*H); |
Measuring Angle | L*:1-100 |
Measuring Condition | CIE 10°standard observer |
Repeatability | Standard deviation within ∆E*ab<0.08（measuring condition: measuring white calibration board 30 times） |
Storage Capacity | 10 samples and 100 data groups for each sample |
Measurement Time | 0.5 second |
Light Source | LED |
Interface Language | Chinese, English |
Power Supply | Four 1.5V AAA-sized alkaline battery or nickel metal hydride batteries / DC 5V |
Interface | USB 2.0, Printer |
Relative Temperature and Humidity | 0-40°C, Up to 80% humidity（35°C), no moisture condensation |
Weight | 550g |
Volume | 77*86*210mm |
