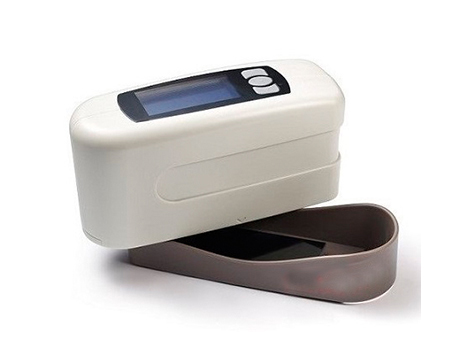

XHY-29 Novo Gloss Meter

Product Category:Gloss and Color Tester

Share:

Product Description

This instrument gains the first- class China Metrology Accreditation, and possesses the shape design with the international fashion, as well as the compact and handy structure, which makes you read more easily and judge the surface gloss intuitively. It is easy to use, and we can measure with only one-step operation. It conforms to 60° Test Conditions pursuant to the provisions of ISO2813. With the powerful functions, it can realize the large volume data storage. It stores the mass data backup through SD card or conducts the data backup by adopting PC connection. The Chinese and English operation interface and exclusive gloss software enable you to make the data analysis and output. It possesses the favorable man- machine interface, high precision, stable property, high cost performance and other characteristics. The overvoltage protection function realizes the automatic power-off under the abnormal situation of the voltage, for fear of the damage of the instrument. The function of updating at any time by the instrument operational software facilitates the updating maintenance of the software, which can guarantee that the operational software keeps the latest version all the time.


Test Standards

ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67 530, JIS Z 8741, BS 3900, BS 6161


Product Features

* Gain the first- class China Metrology Accreditation

* Fit for enterprise internal and external gloss evaluation and data control

* Pass the excellent marketing verification

* Low power consumption design, USB and Bluetooth (optional) data connection

* PC software, computer data management

* Large data storage space.


Technical Parameter

Measuring angle

20°, 60°, 85°

Standard

ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67 530, JIS Z 8741, BS 3900, BS 6161

Measurement of spot size

20: 10x10mm; 60°: 9x15 mm, 85°: 5x38mm

Resolution ratio

0- 99.9 GU:0.1 GU  100 -2000 GU:1 GU

Measuring range

20°: 0.0 -2,000 GU, 60°: 0.0 -1,000 GU,  85°: 0.0 -160 GU

Repeatability

.0-99.9 GU: 0.2 GU, 100-2,000 GU: 0.2% of indication

Storage

100 sets of standard samples, storing 100 sets of testing samples under each standard sample, with free allocation

Indication error

0.0-99.9 GU:±1.5 GU  100-1,000 GU:±1.5% of indication

Measuring time

0.5 seconds

Measuring mode

Sample measuring, statistical measuring, continuous measuring, and basic measuring

Power Source Management

Automatic Backlight-off , Automatic Power-off

Measuring mode

Sample measuring, statistical measuring, continuous measuring, and basic measuring

Power Source

External direct current +5V power adapter / USB/ 1.5V alkaline battery or nickel- metal hydride battery

Interface Language

Chinese and English

Port

USB 2.0

Weight

520g

Size

163.8mmx58.1mmx88.3mm
