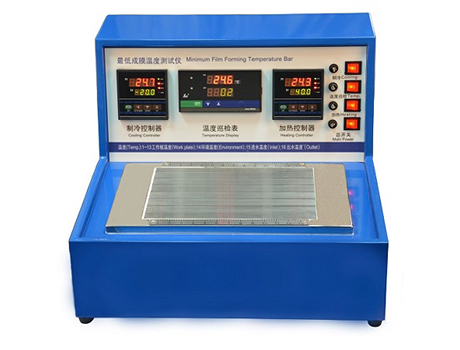

XHY-03 Minimum Temperature Film Forming Tester
Product Category：Paint Tester
When emulsion polymer is used to produce paint, adhesive, chemical blended fabric, surface treatment agents for leather or paper, its film forming property is very important. Apply an emulsion polymer or emulsion paint on the metal board, when the water has been evaporated, polymer particles would form a continuous and transparent film because of interaction under suitable temperature. The ultimate temperature of critical film forming is called as minimum film forming temperature for this emulsion polymer, short for MFFT temperature.
ISO 2115, ASTM D2354
Working temperature of grad board | -7C- 70C |
Number of inspection points of grad board | 13 Points |
Gradient Platen Size | 300mmx200mm |
Test Channels | 6 |
Test Channel Size | 240mmx22mm |
Dimension | 520mmx520mmx370mm |
Weight | 40Kgs |
Power Supply | 110V or 220V |
