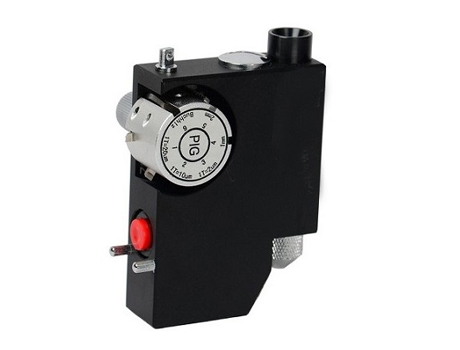

XHY-50 Paint Inspection Guage

Product Category：Paint Tester

 Click to find us  Contact us

Share:   

Product Description

Paint Inspection Guage has three test functions including scratch adhesion test, painting film thickness test and Buchholz indentation hardness test.

Test Standards

ISO 2409, ISO 2815, ASTM D3359, DIN 50986, DIN 53153

Technical Parameter

Paint Thickness Test

Angle Measurement Range

Cutter No.1 45 degree 0-2000um

Cutter No.2 26.6 degree 0-1000um

Cutter No.3 5.7 degree 0-200um

Scratch Adhesion Test:

Blades Interval Measurement Range

Cutter No.4: 1mm 0-60um

Cutter No.5: 2um 60-120um

Buchholz indentation hardness test

Cutter No.6: 15mm radius 125-59 grades
