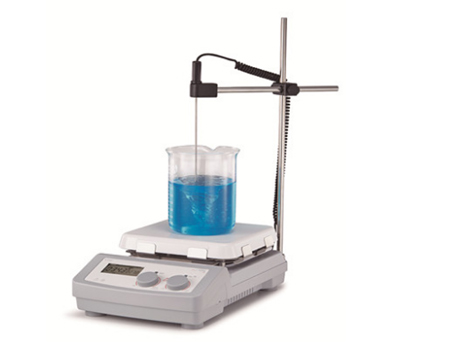

XHY-53 Magnetic Stirrer With Hotplate

Product Category:Paint Tester

Share:

Product Features

•  LCD display for precise monitoring of speed and temperature

•  Built-in PID controller ensures safe heating of the medium with overheating protection

•  Max. heating plate temperature 550°C

•  Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

• External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C

•  Digital speed controlling, max. speed at 1500rpm

•  Outstanding brushless DC motor enables more stirring power

•  Two rotating knobs enable easy adjustment of speed and temperature

•  The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off


Technical Parameter

Work plate Dimension

184mmX184mm (7 Inchx 7 Inch)

Work plate material

Glass Ceremic

Motor type

Brushless DC motor

Motor rating input

18W

Motor rating output

10W

Power

1050W

Heating output

1000W

Voltage

100-120/200-240V  50/60Hz

Stirring positions

1

Fits breakers to 500ml

20L

Speed range

100-1500rpm

Speed display

LCD

Temperature display

LCD

Speed display resolution

±1rpm

Heating temperature range

Room temp.-550°C, increment 1°C

Control accuracy of work plate

±1°C(<100°C)     ±1%(>100°C)

Over heat Protection

580°C

Temperature  display accuracy

±0.1°C

External  temperature sensor

PT1000 (accuracy ±0.2°C)

"Hot" warning

50°C

Protection class

IP21

Dimension [W x D x H]

215×360×112mm

Weight

5.3kg

Permissible ambient temperature and humidity

5-40 80%RH
