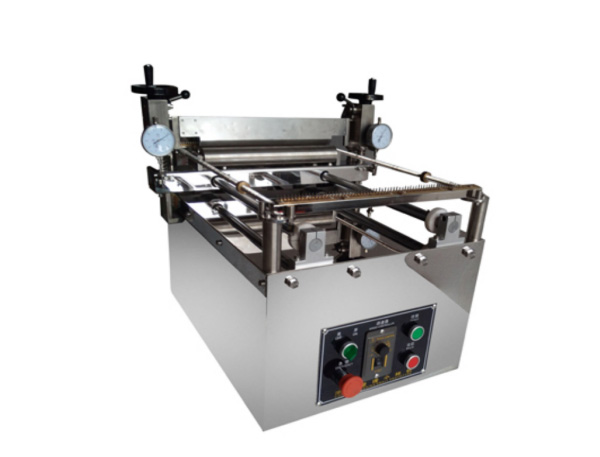

XHS-18T Textile Lab Coating Machine
Product Category：Lab Dyeing Machine and Finishing Machine
The lab coating machine is used for textile and other materials.
Main Configuration | Mobile Needle Plate Frame, Coating Roller, Scraper |
Control | Electronic |
Material | Whole machine use SUS 304 Stainless Steel |
Coating Size | Max Coating Size: 500mmx300mm, Effective Coating Size: 370mmx300mm |
Mobile Needle Plate Frame | Can be with fabric into lab stenter |
Coating Roller | Diameter 40mmx300mm |
Scraper | Stainless steel material, angle 30 degree before coating |
Coating thickness | 0-5mm |
Resolution | 0.01mm |
Coating Parameter | Modify coating parameter via modify scraper’s vertical position, roller position. |
Transmission | Ball Screw, imported guide rail |
Speed | 0-1 meter/min adjustable |
Power Supply | 220V, 50Hz |
Dimension | 540mmx650mmx540mm |
Weight | 66Kgs |
