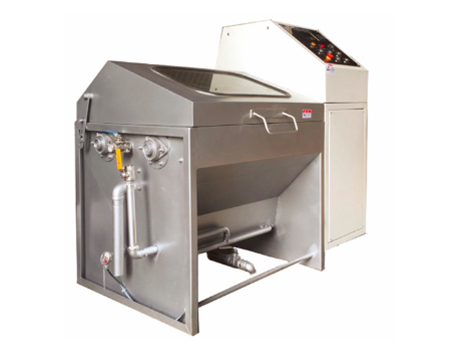

XHF-JY Laboratory Jig Dyeing Machine

Product Category：Lab Dyeing Machine and Finishing Machine

 Click to find us  Contact us

Product Description

Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It's applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It's also helping you to develop new dyeing formula.

Technical Parameter

Fabric roller	φ160-φ180mm
Center distance between two rollers	350-400mm
Degree of ex-pander peach shape roll	15-25mm
Dye tank:cloth roller	φ125mm,solution 40L/m;
Speed of fabrics	0-50m/min ,with infinitely variable speeds;
Transmission Model	two AC motors ,Reduction helical gear box
Running speed	0-50m/min ,tension range:0-80kg
Installed capacity	3-6kg
Material	Stainless Steel
