1. Adjust to the same pick up with bulk production and provide precise pressed dyeing or resin prescription

2.To check the color shade change and to further avoid it happening during resin finishing or heat setting processes after dyeing.

3.Application tests of water repellent, flame retarding and other coating tests special features.

1. Constant nip pressure can be kept due to pneumatic design

2. The left or right side pressure of padding roller can be independently adjustable to the required one.

3. Easy to operate once you set the required padding nip pressure no other re-adjustment will be needed.

4. Safety devices include a fabric feeder, safety rod, emergency button and a knee pedal to make sure the safe operations at every test.

1. One pair of padding rollers made of N, B, R, rubber material of 70°shore hardness

2. Rubber roller diameter 125mmφlength 450 mm

3. Driven by 1/4 hp motor with speed reducer (voltage & hertz to be specified)

4. Cloth speed: 10m/min

5. Revolving speed is 0-12rpm (variable frequency speed control)

6. Two pressure gauges 0~5kg /cm2

7. Two pressure regulating valves (precision 0.1 kg /cm2)

·8. Air compressor is excluded.

9.Fluid bed more than 500cc is supplied

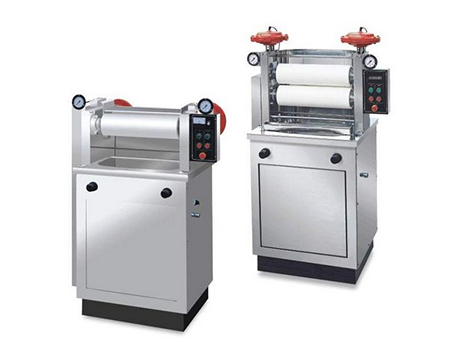

PA:Vertical Lab Padder  PB: Horizontal Lab Padder
