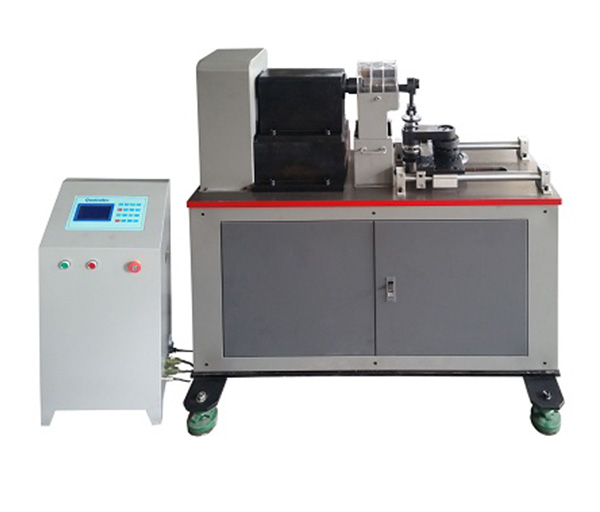

XHL-11 Bending Fatigue Testing Machine
Product Category：Torsion and Bending Testing Machine
A test piece mounted as a cantilever with single point loading is made to rotate and thus subjected to a bending moment.
ISO/DIS 1143
Adopt micro-processor control, real time display rotation times, automatic stop when specimen broken or reach preset testing time, testing results can be stored and printed out. Adopt AC servo motor, running steady, a set calibrated weights will be provided, LCD screen set circle times and speed.
Bearing: special ball bearing, clearance adjusted for axial and longitudinal guide.
Coupling system: flexible coupling.
Protection: with protection cover, over current protection, over voltage protection, overload protection..etc.
Rotation speed | 150rpm-4000rpm (adjustable) |
Motor | AC Servo Motor |
Fatigue type specimen | Cantilever beam type |
Beaning moment | Up to 100N.m |
Weights | Up to 200N (Other capacity can be provide upon the request) |
Testing Times | 0-999999 |
Specimen length | 100-200mm (other length can be requested) |
Specimen diameter | Ф10-Φ20mm |
Parallelism | ≤0.05mm |
Bend load arm | 50-100mm ( (other can be requested) |
Display | Testing times, speed |
Dimension | 1050*400*1100mm |
Weight | 350kgs |
