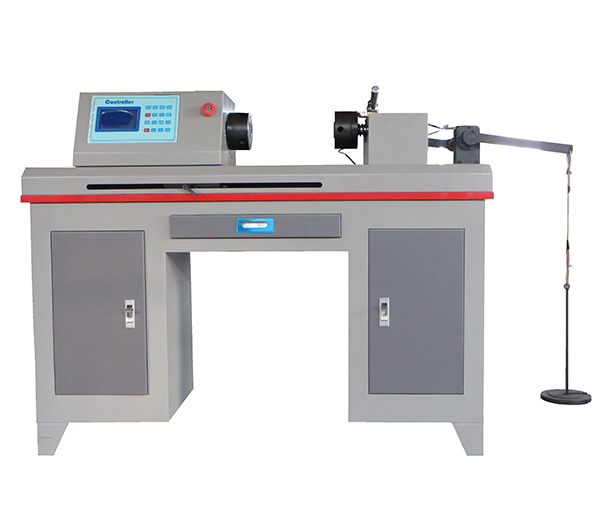

XHL-08 Wire Torsion Testing Machine
Product Category：Torsion and Bending Testing Machine
XHL-08 Metal Wire Torsion Tester is used to execute metal wire torsion test, measure the metal wire endure of plastic distortion ability in single or double direction torsion condition, check the surface or internal defect, LCD display.
ISO 7800, ISO 9646, ASTM A938
1. Random speed can be selected to meet test requirement.
2. Has lever-weight loading fixture, can produce a tensile force not exceed 2% to make wire straight during test.
3. Auto-stop after specimen fracture.
4. Has two rotate directions
Model | A | B | C |
Wire Diameter | ⌀1mm-⌀3mm | ⌀3mm-10mm | ⌀10mm-20mm |
Distance Between Clamps | 300mm | 500mm | |
Rotation Speed | 60-120 rpm adjustable | 30-60 rpm adjustable | |
Power Supply | 380V±10%, 50Hz | ||
