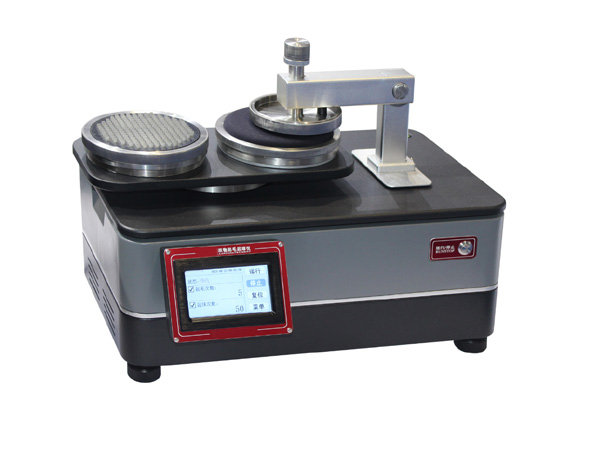

XHF-03E Circular Locus Pilling Resistance Tester
Product Category： Pilling Tester
Circular Locus Pilling Resistance Tester is used for testing pilling of all kinds of fabrics in circle track.
GB/T4802.1, DIN5386.2
316L stainless steel rubbing head and weights.
Big color touch screen operation.
The transmission sliding mechanism adopts imported linear sliding block, which runs smoothly.
The silent drive motor is equipped with a speed regulator, low noise.
Motion Track | Φ40mm circular trajectory |
Movning Speed | 60 ±1 r/min (adjustable) |
Brush Height | 2-12mm (adjustable) |
Pressure on specimen | 490CN, 590CN,780CN |
Counting Range | 1-99999 |
Specimen Dimension | Φ112.8mm |
Dimension | 550×400×400mm |
Weight | 35Kgs |
Power | 220V, 50Hz |
