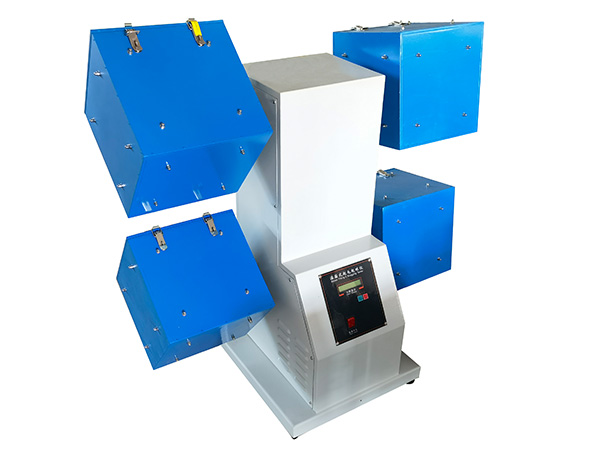

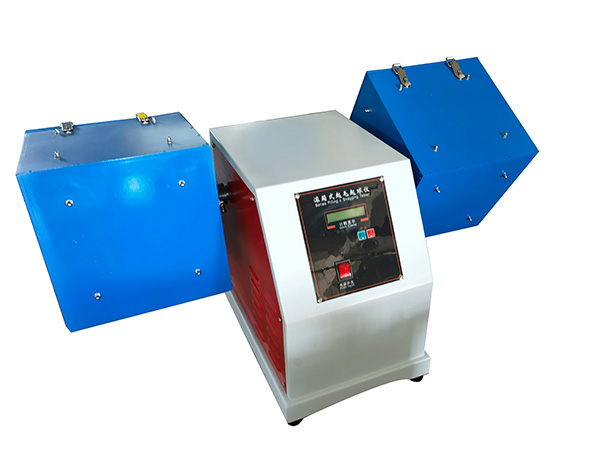

ICI Pilling Box Tester is used for Determination of fabric propensity to surface fuzzing and to pilling by Pilling box method. Used for pilling test of fabrics ( woolen jersey especially ) under no pressure.
EN ISO 12945.1, IWS TM152, BS5811, ASTM D3939.
1. Fitted with digital electronic counter, can self-verify tester by comparing readout from them.
2. Electronic counter can record accumulated number of test cycles automatically, also easy to reset the counter, auto-stop when reach set testing times.
3. Simplified designing, more convenient to operate, and easy to maintain.
4. Synchronous speed motor drives the test boxes, ensuring constant speed of rotation.
Model | XHF-03A-2 | XHF-03A-4 | XHF-03A-6 |
Number of Pilling Box | 2 | 4 | 6 |
Rotation Speed | 60+/-2 r/min | ||
Size of Inner Box | 235×235×235mm (L×W×H) | ||
Counter | 1-99999 Auto Stop | ||
Specimen mounting tube size and weight | 32×140 mm , 52.5g | ||
Power Supply | 110V/220V, 50Hz/60Hz | ||
Machine Size | 860×480×500mm | 860×480×880mm | 860x480x1130mm |
Weight | 65Kgs | 95Kgs | 115Kgs |
