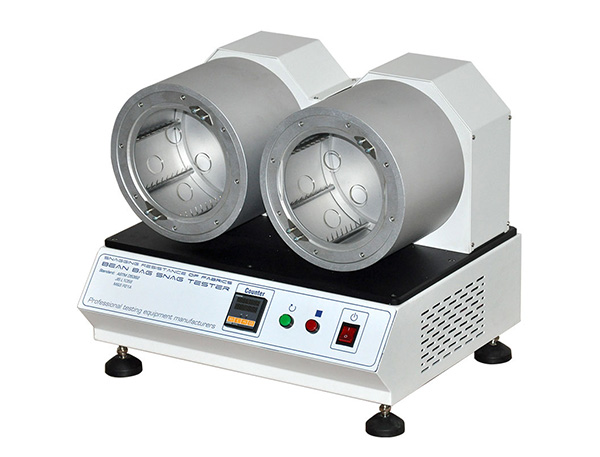

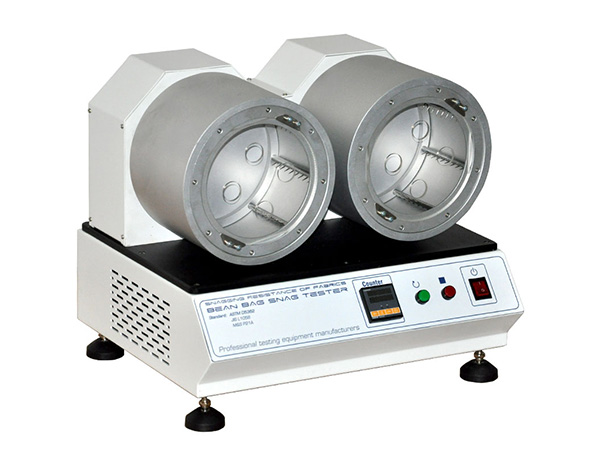

XHF-03D Fabric Bean Bag Snag Tester
Product Category： Pilling Tester
Bean bag snag tester, to determine the snagging and picking characteristics of knitted fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20RPM for 100 rev. provided with predetermined electronic counters.
ASTM D5362, JIS L1058, M&S P21A
Rotation Speed | 20±3 r/min |
Work Station | 2 |
Size of Cylinder | Diameter: 200mm, Depth: 145mm |
Pinned Bars | 8 Pc / Cylinder |
Needles | 9 Pc/ Pinned Bar, Bean Bag: 450 g |
Specimen Dimension | 215mmx115mm |
Counter | 1-999999 |
Weight | 38kgs |
Power Supply | 110V/220V, 50Hz/60Hz |
