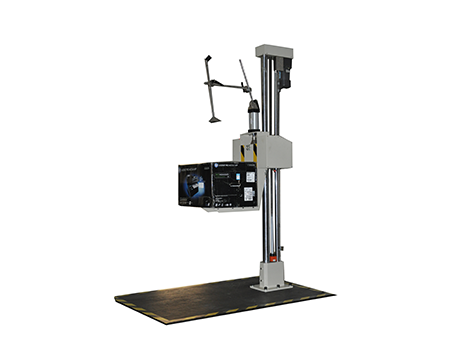

XHV-07 Package Drop Impact Tester

Product Category：Packaging Tester

 Click to find us  Contact us

Share:   

Product Description

Package Drop Impact Tester is driven by a pneumatic cylinder controlling a single wing structure. It only takes a small space to operate and is ideally suited for testing the impact of cartons, luggage cases, suitcases, electric equipment, etc. It can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status.

Test Standards

ISO 2248, JIS Z0202-87, ASTM D5276.

Product Features

1. Pneumatic single arm dropping
2. Machine structure is stable and strong
3. Motor has brake function to adjust to a precise height
4. Screw transmission

5. Method of adjust the height: motor+Axel

6. Hydraulic pressure buffering device

7. Remote control rise, stop, down, drop action

Technical Parameter

Drop Height	300-1200mm
Specimen Max Weight	50-60kgs
Specimen Max Dimension	700mm×700mm×700mm
Drop Panel Area	1000×1500mm
Dimension	1000x1500x2030mm
Weight	350kgs
Power	220V, 50Hz
