Modern linear guide technology, pre-loaded ball screws and advanced software.

3

No special computer required, controller is embeded in the host machine

4

Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.

5

Built-in of test methods meeting international test standards.

6

Pre-load test standards for ASTM standard and ISO standard for foam test

7

All test procedure is carried out easily with our professional software

8

Test automation and batch testing

9

Test creation is provided by software

10

Multi points load is calibrated to ensure calibration is accurate

11

History track function easy to track previous test results according to date, name..etc

11

Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000

12

Adopt high precision load cell to keep measurement more accurate and stable.

13

Automatically detection of the adjustment and calibration by electronic system and software.

13

Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000

14

High stiffness structure to 5KN

14

With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop

15

Test results can be directly output, or via bmp, excel, txt...etc

16

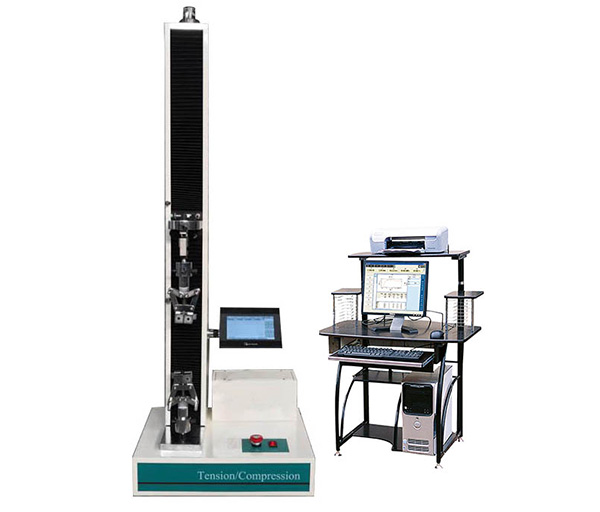

Dual Control, Touch Screen Operation and PC Operation

18

Cables Connection is very simple

Accuracy

+/-0.5% of Indication Value

Strength Resolution

1/500000

Drive System

AC Servo

Unit Switch

Kg, N, KN, LB, mm, Inch

Travel distance

700mm (other travel distance according to requirement)

Extension resolution

Min 0.001mm

Speed

0.01mm-500mm/min (adjustable)

Speed Accuracy

+/-1%(0.01-10mm/min); +/-0.5%(1-500mm/min)

Data acquisition rate

Max 1000Hz

Position Measurement

Omron Encoder

Software

Included with analysis and results output software

Tension Grips

According to to different material

Compression Plate

Diameter: 100mm

Power

220V, 50Hz, Single Phrase

Dimension

520×380×1600mm

Weight

110Kgs
