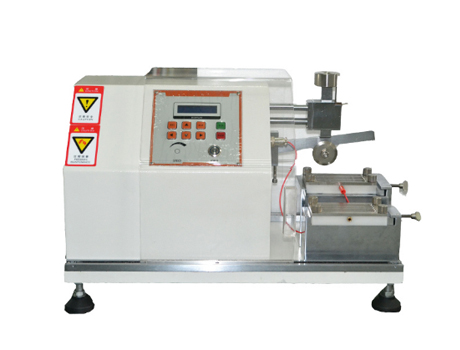

XHF-93A Blade Cut Resistance Tester
Product Category：Protective Glove Tester
Blade Cut Resistance Tester is used to determine the protective capability the safety glove against cutting.
Adriving rotation round blade under a specified load cuts the glove held by the fixture of tester to and fro. After test, compare it with its original statuses toget the result.
ISO 20344, EN388-2016-6.2
Load on blade | 5+/-0.05N |
max.cutting speed | 8+/-2cm/s (adjustable) |
Horizental moveing distance | 50mm |
Blade Dimension | Diameter: 45+/-0.5mm, Thickness: 0.3+/-0.03mm |
Blade Angle | 30 to 35º; |
Blade Hardness | 700-720V |
Counter | 1-99999,Automatic Stop |
Specimen holders | 2 Pcs |
Dimension | 550×400×250mm |
Weight | 40Kgs |
