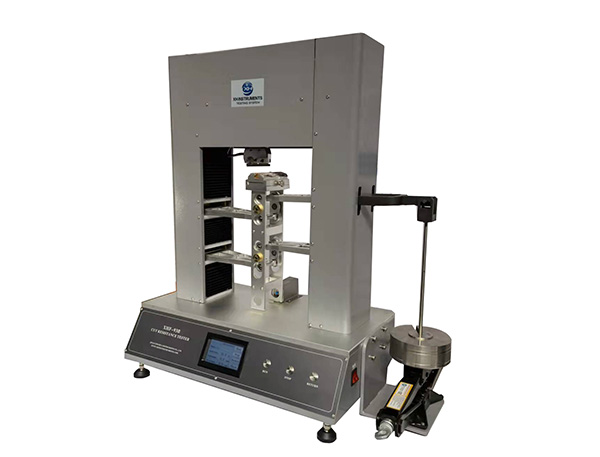

XHF-93B Cut Resistance Tester
Product Category：Protective Glove Tester
TMD Cut Resistance Tester is used for cut test of protective materials.
The cut resistance of a material is its ability to resist being cut through by a blade. This is measured in a machine in which a sharp blade is drawn across a specimen. The cuts are achieved in blade movements of 3 mm to 50 mm length when a range of forces are applied to the blade normal to the specimen surface.
EN 388-2016, ISO 13997-1999, ASTM F1790
Real Time collecting Data from PC and genetrate the report
Use imported bldes to make test results more accurare
Force Range | 1.0-200N |
Blade Cut Distance | 0-50mm |
Blade | Thickness (1+/-0,5) mm, Bevel Width (2.5+/-0,2mm), Hardness> 45HRC |
Blade Moving Speed | 2.5±0,5mm/s |
Load Weights | 20N 8 Pcs, 10N 3 Pcs, 5N 1 Pc, 2N 2 Pcs, 1N 1 Pc , 0.5N 1 Pc |
Dimension | 560×400×700mm |
Weight | 40Kgs |
Power Suply | AC 220V, 50Hz |
