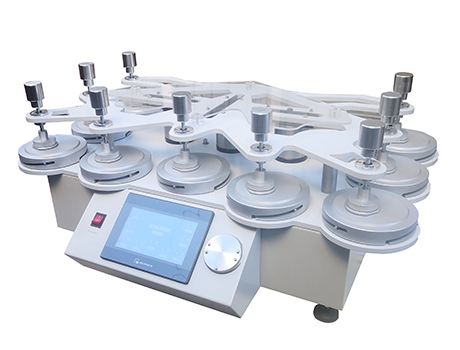

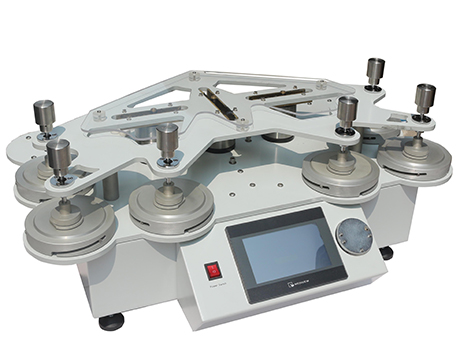

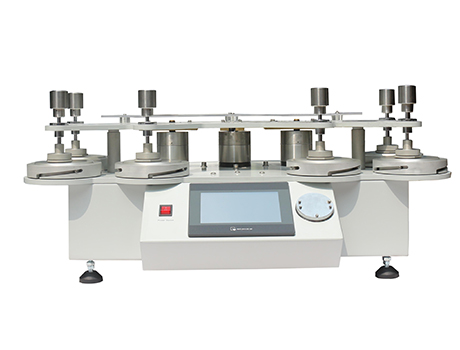

XHF-05 Martindale Abrasion and Pilling Tester
Product Category：Abrasion Tester
Martindale Abrasion and Pilling Tester is used for abrasion resistance and pilling test of woven fabrics, knitted fabrics, pile fabrics, coated fabrics, non-woven fabrics, leather..etc.
ISO5470, IWS TM112/196, DIN53863/53865, BS3424/5690, BS EN 388/530, JIS L1096, ASTM D4966/4970 , ISO12945-2, ISO17079-2, ISO 12947, ISO17704, ISO 20344, ISO 17076-2, SATRA TM31 and so on.
1. Our martindale abrasion tester. such as upper plate, different design, our machine use cooper in it, use strong plexiglass, clamp ring is better..etc, very beautiful.
2. Use touch screen is 7 inch size..
3.. Control each stations separately.
4.. Running is silent during working.
5. Draw two lissa-jous trajectory, have a good repeatablity.
6. Datas can be restored after the power offer.
7. Abrasion table is made of aluminum.
Work-Station numbers | 6, 8 or 9 |
Counter display | Preset counter display: 0-999999 Cumulative counter display: 0-999999 |
Speed | 47.5+/-2.5rpm (25rpm, 75rpm optional) |
Abrading table diameter | φ120mm |
Abrasion test | A: cloth specimen clamp:198g+/-2g |
B.textile specimen hammer:395g+/-2g (Equal to 9Kpa) | |
C: furniture deck specimen hammer:594g+/-2g (Equal to 12Kpa) | |
Pilling Test | A: cloth specimen clamp:155g+/-1g |
B: textile specimen hammer:260g+/-1g | |
Weight of load hammer | 2385g+/-10g |
Dimension | 850mm×600mm×400mm |
Weight | 90 Kgs |
Power: | 110V/220V, 50Hz/60Hz |
