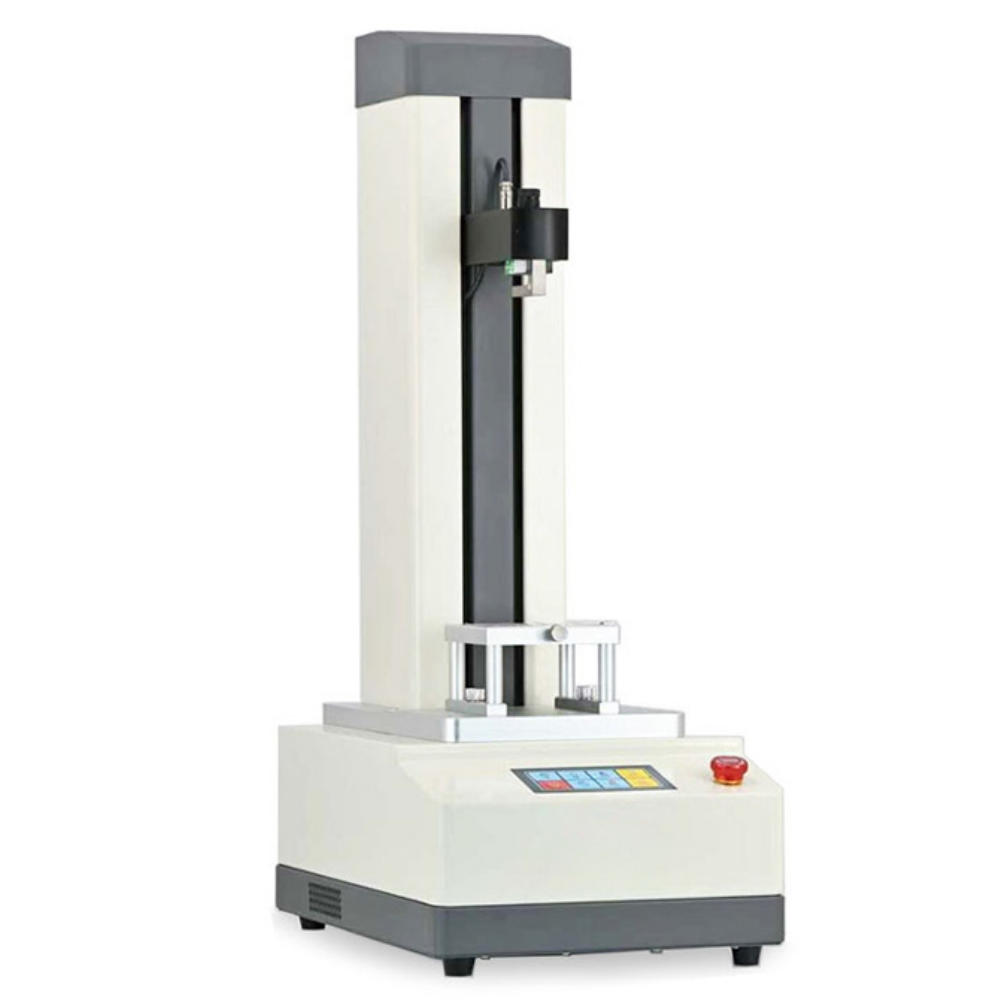

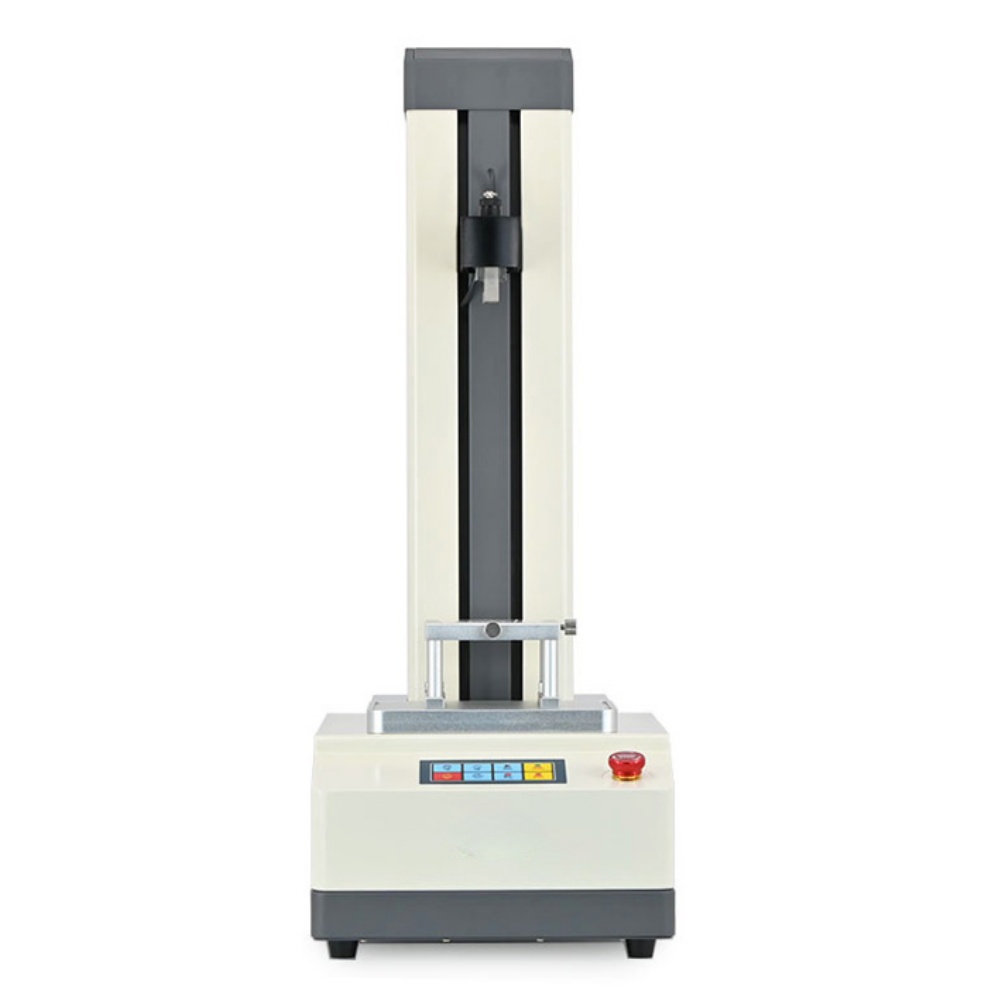

The XHL-02TA is applied to the physical property analysis of samples such as gelatin, carrageenan, curdlan, frozen surimi gel, agar composite hydrogel, sodium hyaluronate gel, pharmaceuticals (tablets, capsules, ointments, patches, suppositories, needle passability, powders) , cosmetics, dairy products, meat products, aquatic products, grain and oil foods, rice products, flour products, traditional Chinese medicines, tobacco, fruits and vegetables, baked foods, jelly, candies, jams, etc. It can accurately quantify multiple physical property indicators of samples, including gel strength, hardness, brittleness, tenderness, viscosity,

elasticity, toughness, cohesiveness, chewiness, tensile strength, breaking strength, shear strength, compressive strength, penetration strength, creep characteristics, and relaxation characteristics.

Chinese Pharmacopoeia, 2025 edition.

◆ In line with current Chinese GMP regulations.

◆ National Standard "Food Additive Gelatin" GB6783-2013.

◆ National Standard "Medicinal Gelatin Hard Capsules" GB13731.

◆ National Standard "Food Additive Gelatin, Curdlan" GB28304-2012.

◆ National Standard "Frozen Surimi" GB/T36187-2018.

◆ Light Industry Standard "Edible Gelatin" QB/T4087-2010.

◆ Agricultural Industry Standard "Determination of Meat Tenderness - Shear Force Method" NY/T1180-2006.

◆ AACC 74-09 Bread Hardness Test (American Association of Cereal Chemists).

◆ AOAC (American and European Gel Association).

◆ AACC16-50 Noodle Hardness Test Method (American Association of Cereal Chemists).

◆ ASTM 1981 D882-80a Film Test (American Society for Testing and Materials).

◆ BS (British National Standard).

1. Equipped with a light-touch keyboard as auxiliary keys, which not only facilitates experiments but also enables device control in offline mode.

2. The force sensor can be replaced quickly and safely. By switching the force sensor, the detection range can be changed, and the sensing resolution accuracy (0.001g~0.0001g) can be adjusted to adapt to different sample analyses.

3. Provides video and image capture functions, which can record the entire process of important sample tests, and synchronously display the recorded video along with other detection data and strain curves of the test in the software window, and synchronously save them to a traceable database.

4. With a data acquisition rate of 4000 groups per second, it can capture the precise moment when the sample changes, avoiding missed judgments and misjudgments.

1. Force sensor size: 25Kg (0.5、1、2、5、10、20、25、30、50Kg、100 Kg optional)

2. Force sensor accuracy: ≤0.01%FS

3. Force resolution accuracy: 0.001g (real-time synchronous display)

4. The instrument has multiple protection functions: emergency braking, upper and lower limit control, force sensor overload protection (customizable over-limit warning settings), and detection data encryption.

5. Measuring Arm Range: 0~310mm (0~410mm optional)

6. Displacement resolution accuracy: 0.0001mm (real-time synchronous display)

7. Detection speed: 0.001~45mm/s (0~60mm/s optional)

8. Detection speed error: ≤0.1%

9. Data acquisition rate: up to 4000 groups/second, optional: 20, 50, 100, 200, 500, 1000, 2000, 4000, custom (custom acquisition rate is suitable for universities and research institutes when exporting special data)

10. Force accuracy verification measurement and automatic calibration: The instrument provides a precision measurement and verification control interface. Through the detection of 5 consecutive standard samples, the qualified or out-of-tolerance detection data are directly displayed on the software. The instrument automatically completes measurement and calibration through data algorithms, and prints the measurement report by itself, with the data stored in the audit database at the same time.

11. Deformation displacement accuracy verification measurement and automatic calibration: The instrument is equipped with a displacement accuracy measurement operation interface as standard. Through the communication between the electronic micrometer and the software, the qualified or out-of-tolerance detection data are directly displayed on the software. The instrument automatically completes measurement and calibration through data algorithms, and prints the measurement report by itself, with the data stored in the audit database at the same time.

12. Testing methods: (more than 20 testing methods provided)

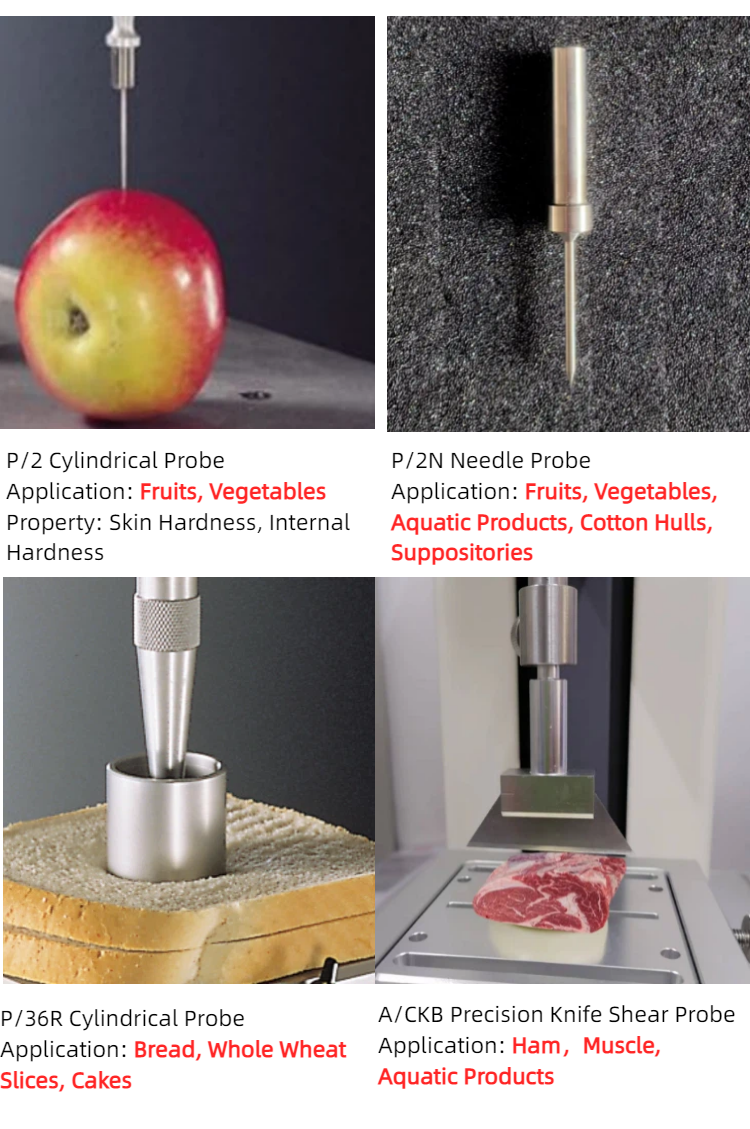

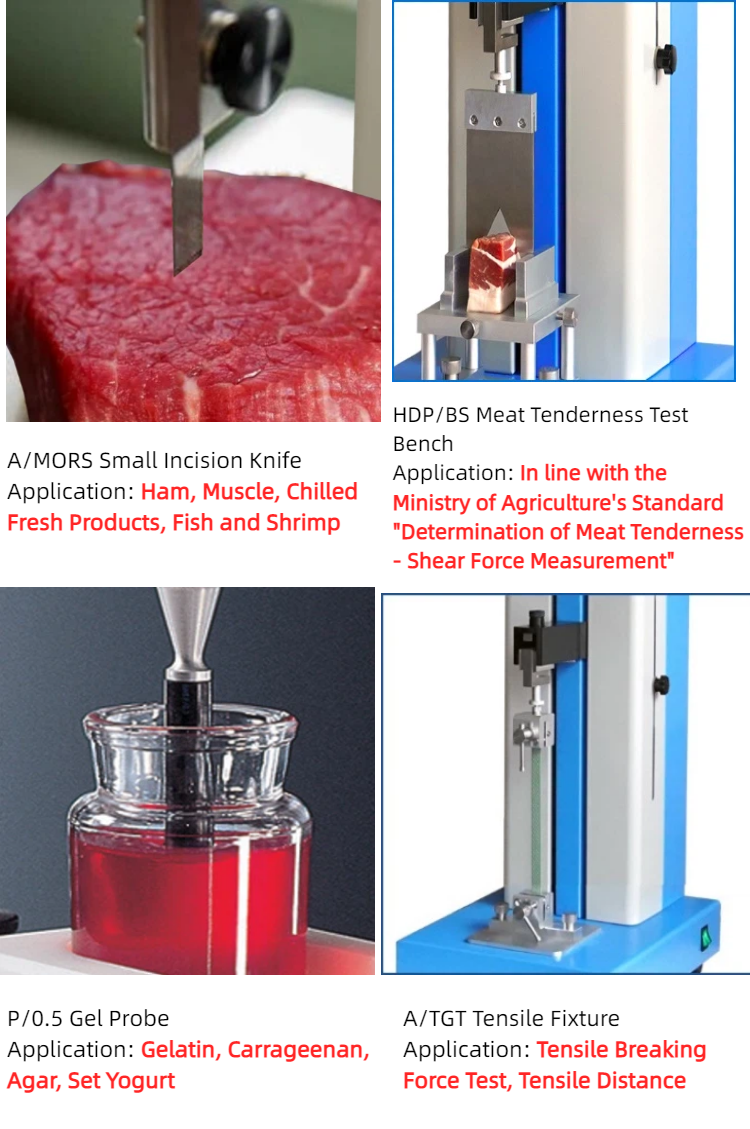

Single compression, cycle test, compression holding test, relaxation characteristic test, creep characteristic test, full texture test, tensile test, compression test, bending test, shear test, puncture test, meat tenderness test, gel strength test, carrageenan-surimi gel-curdlan-agar strength-hydrophilic gel test, flour product test, rice product test, aquatic product test, adhesion test, compression modulus, elastic modulus test, etc. The software also supports quick custom addition of test modes.
