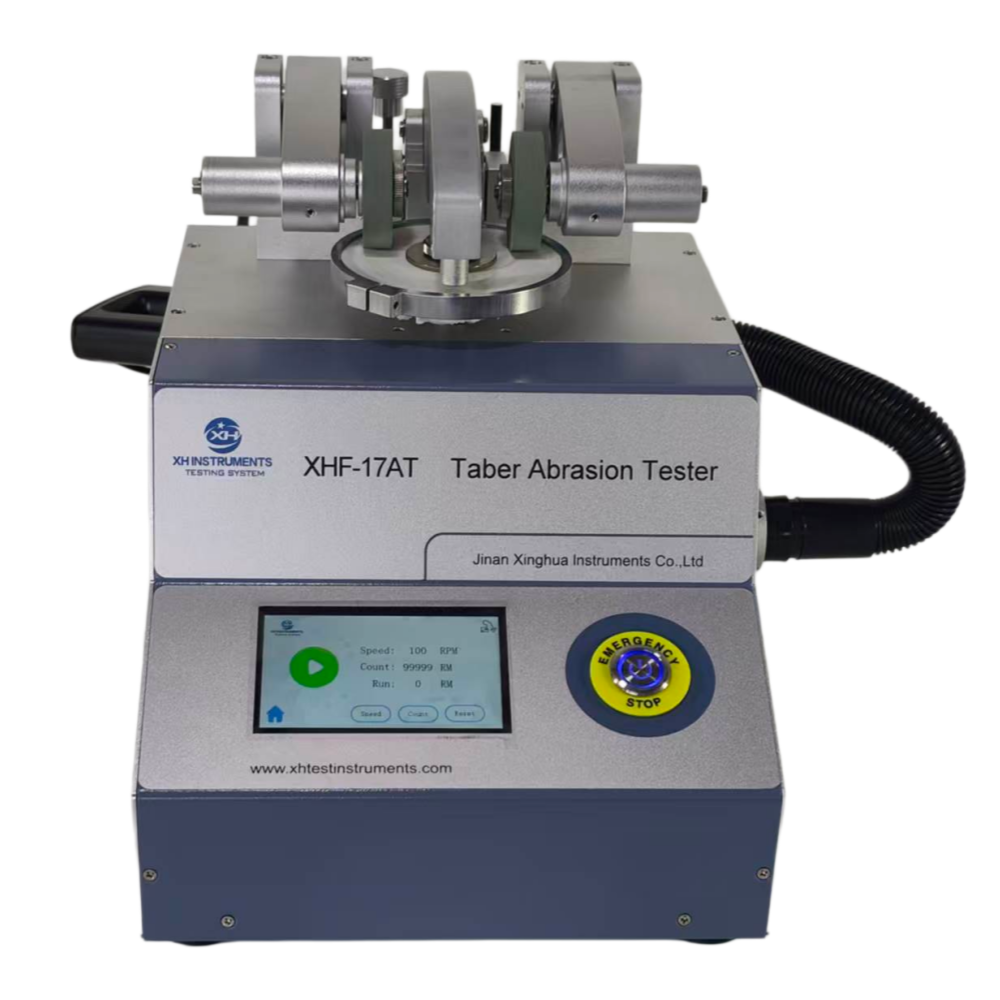

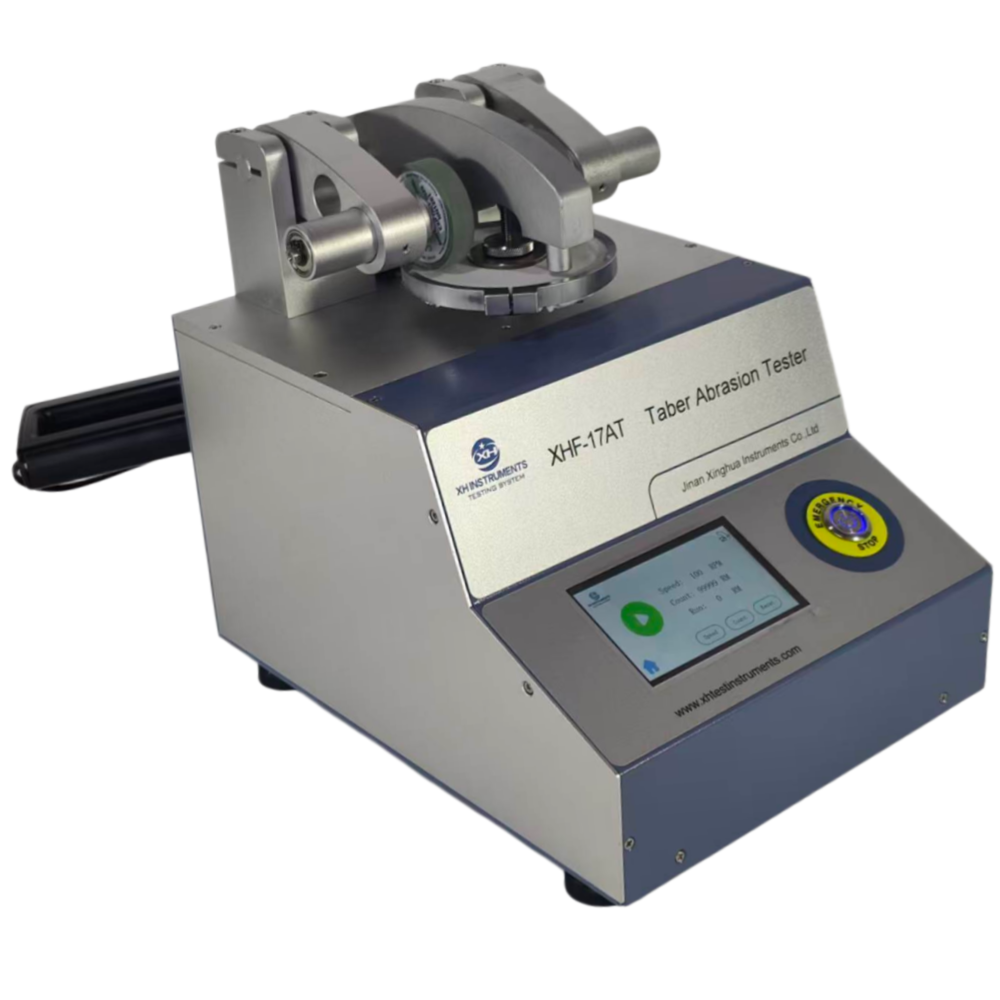

XHF-17AT Taber Abrasion Tester

Product Category：Abrasion Tester

 Click to find us  Contact us

Share:   

Product Description

The tester is used for cloth, paper, paints, plywood, leather, tile, glass, rubber, etc .The testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load .The weight of abrasion loss is the difference of weight for specimens before and after testing .

Test Standards

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044, ISO 7784, ASTM D4060, EN 660-2, DIN 68861-2

Technical Parameter

Rotating Speed	5-100r/min (Adjustable)
Test Load on specimen	250g, 500g, 750g, 1000g
Hole diameter	6.35mm
Test times	0-99999 Autostop
Dimensions	255mmx350mmx296mm
Power Supply	220V, 50/60Hz, Single Phase
Standard Configuration	Machine(include sample holder, hold down ring, power cord, weights, brush, touch pen, vacuum Cleaner, CS-17 calibrase wheel)
