+86-531-67880131Your Location：Home > PRODUCTS>Paint Testing Equipment>Adhension and Bending Tester

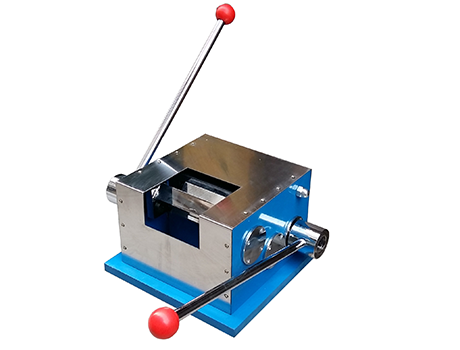

T Bend Tester is specially designed to determine the flexibility-T bending performance of color coating of steel plate. Bend the sample by 180° around itself (coating is at the outside the curved surface), stick adhesive tape with certain adhesion to the curved surface, then tear it down rapidly, observe whether the paint will drop off to determine bending performance of sample. Take the minimum T bending value when there is no falling coating at the bending place as the final result.
This tester complies with NCCA <Standard “T” Bending Test Method>, ASTM D4145
Press-able steel plate: 0.1-1mm Aluminum plate: 0.1-2mm
Weight: 50kgs
Shape Size: 300×300×190mm (LXWXH)
