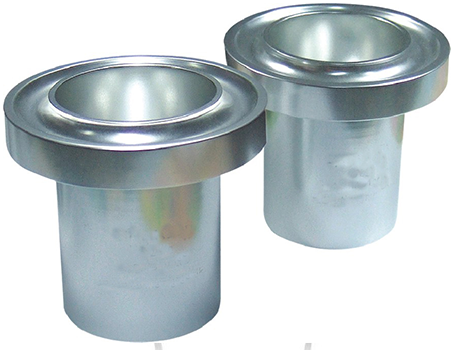

XHY-08 Ford Flow Cup

Product Category：Viscosity Tester

 Click to find us  Contact us

Share:   

Product Description

Ford Cup is produced in according to the American paint and raw material standard ASTM D1200, D33, D365, and it is widely used in Europe and North America, It is made of high quality aluminum with a stainless steel nozzle insert and the capacity is 100ml.

Test Standards

ASTM D1200, D33, D365

Technical Parameter

Material: Cup body-aluminum alloy
          Nozzle-stainless steel
■Volume: 100 mm
■ Internal Diameter: 50±0.05mm
■ Outer Diameter: 86±0.1mm
■ Internal Orifice Length: 10±0.1mm
■  Details of each Ford Cups

Details/Ford cup	Ford Cup (2#)	Ford Cup (3#)	Ford Cup (4#)
Internal Vertical Height	43±0.1mm	43±0.1mm	43±0.1mm
Internal Orifice ф（mm）	2.53 mm	3.4 mm	4.1 mm
Centistokes Range	25-120	49-220	70-370
Efflux Time（sec）±0.2	40-100	25-105	20-105
