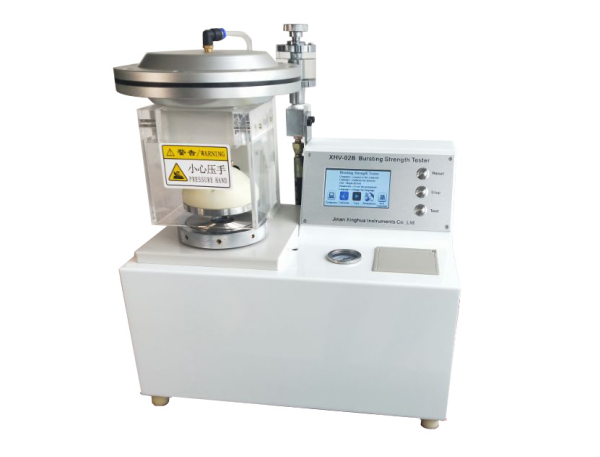

XHV-02B Corrugated Board Bursting Strength Tester

Product Category:Board Tester

Share:

Product Description

Corrugated Board Bursting Strength Tester conforms to relevant standards .It uses pneumatic clamping sample , digital display and applies to measure bursting strength of paper , corrugated cardboard, leather, fabric and other sheet materials .


Test Standards

ISO 2758, ISO 2759, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403


Product Features

1. Adopt pneumatic clamping sample and USA microcomputer control technology, color touch screen display and the functions of test data processing and printout , also can display test curves.

2. Use stainless steel measurement head, precision screw driven, Aluminum-alloy panel, good quality copper oil cylinder.

3. Use Silicon oil as the driving force to break the specimen to keep mahine always clean.

4. When the specimen is broken, it automatically stores maximum.

5. It have statistic function.

6. Modern design concept of electro-mechanical integration , it has compact structure ,elegant appearance and convenient maintenance.

7. Have three units, Kpa, Psi and kg/cm2


Technical Parameter



      Model No.





XHV-02A



XHV-02B

Test specimen

Paper

Corrugated Board

Power Supply

Power:220V±10  50HZ

Circumstance Temperature C

20±10

Relative Humidity       %

< 80

Hydraulic oil

Silicon Oil 85%, distilled water 15%

Horsepower

Shockproof motor 1/4HP

Induction way

Pressure converter

Indicating way

Touch screen display

The Diameter of upper Platen hole  mm

30.5±0.05

31.5±0.05

The Diameter of Lower Platen hole mm

33.5±0.05

31.5±0.05



The dimension of rubber film mm



Thickness 0.8---0.9

The height of middle bulge 2.5±0.2

The height of middle bulge 27.8

The resistance of rubber film mm

When raise 9mm,20-40

When raise 10mm,170-220

When raise 18mm,250-350

The tension between two plasten Kpa

≥430

≥690

Testing Range     Kpa

70-1570

250-5600

Resolution   Kpa

0.1 Kpa

1Kpa

Oil ml/min

95±15

170±15

Dimension

500×300×540 mm

Weight

50kgs
