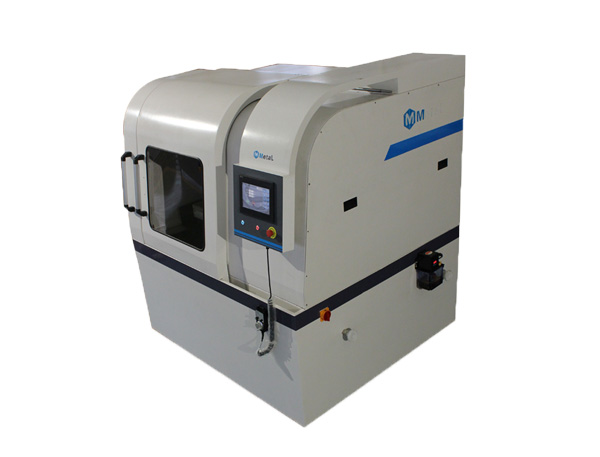

XHL-23 Metallographic Cutting Machine
Product Category：Metallogaphic Cutter
Automatic metallographic sample cutting machine is a large automatic cutting machine, using PLC with a very high reliability, strong control ability; in human-computer interaction using a touch screen; the control adopts high precision stepper motor; it is suitable for cutting various metal specimens. Metal materials, in order to observe the metallographic, petrographic tissue. The machine cutting process automation with low noise,simple operation, safe and reliable, is one of the important equipment in modern laboratory production of solid material samples.
Input voltage | 380V 50HZ |
Spindle speed | 0-2600r/min |
Cutting | Manual/Automatic |
Cutting capacity(Max) | Φ170mm |
Max Table Moving Distance | X: 150mm Y: 750mm Z: 290mm |
Cut-off wheel | Φ500×4×32mm |
Cutting motor | 7.5kw |
Table Dimension | 600mm×800mm |
Dimension | 1850×1650×1900mm |
Weight | 2500Kgs |
