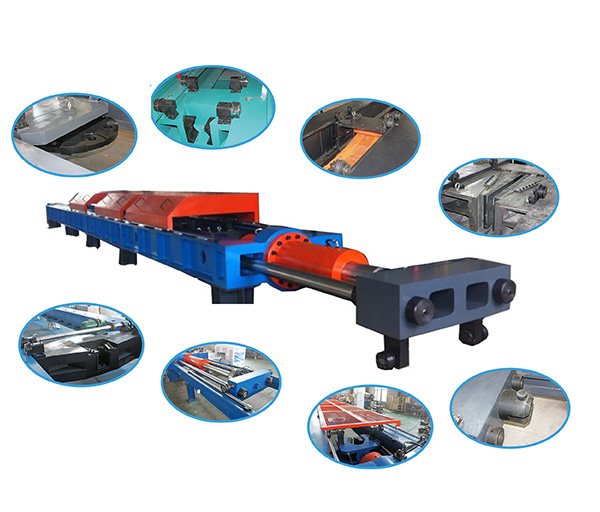

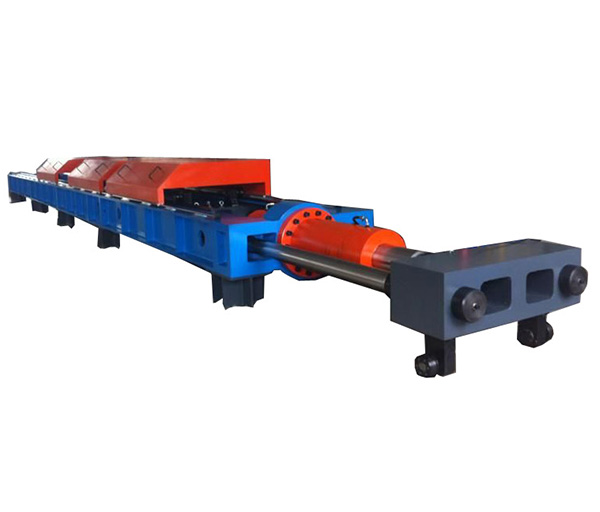

XHL-05E Computer control Horizontal Tensile Testing Machine is suitable for tensile test of long material like wire rope, cable, nylon rope, sulators string and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user’ programming function. It’s widely used in some plants who produce longer materials.

ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.

Large effective bed clearance enables testing of a wide range of specimens, full length specimens; sling construction; high capacity specimens.

An adjustable carriage is provided supported on free moving rollers for easy placement of the carriage appropriate to the nominal test specimen length.

Main frame compressing of steel section side frames cross braced and featuring location points for moving carriage at incremental positions along the bed.

Frames, fixtures and strain measurement devices can be designed & manufactured to accommodate many types of products that require tensile tests; piston head and cylinder ends fitted with low friction seals.

Loading accuracy well within ±1%

XHINSTRUMENTS state of the art electronics and software guarantees high performance and accuracy.

Fully computer control with professional English testing software.

Full protection cover is up and down via hydraulic, firmly be fixed on the machine.

Horizontal Tensile Testing Machine is fully guarded by fixed plates at base of bed and hydraulic electric operated, hinged guards at top of bed section.
