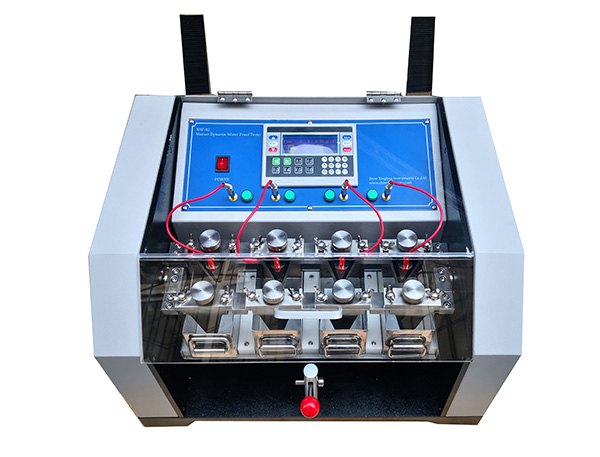

XHF-82 Maeser Dynamic WaterProof Tester
Product Category：Water Proof Tester
Maeser Dynamic Water-Proof Tester is used standard steel ball placed in the interrior ofleather, and in this way to do water-proof and twist testing. Testing before need to set the number of reverse and automatically shut down when the number arrive, the machine is equipped with a sensor, when the water infiltrate into the interior of leather, it will automatically stop counting time, and display the time of twist.
ASTM D-2099, SATRA PM-34, ALCA E56
Specimen Number | 1-4 |
Specimen Size | 4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm) |
Ball total weight (Load) | 135 ± 5gs |
Ball size | 3mm |
Testing displacement | 30 ± 1 ° |
Testing speed | 90±5cpm (adjustable) |
Counter | LCD display, 0~999,999 |
Motor | 90W |
Dimension(L×W×H) | 700mm×450mm×460mm |
Weight | 60kg |
Power supply | AC220V,50Hz, Single Phrase |
