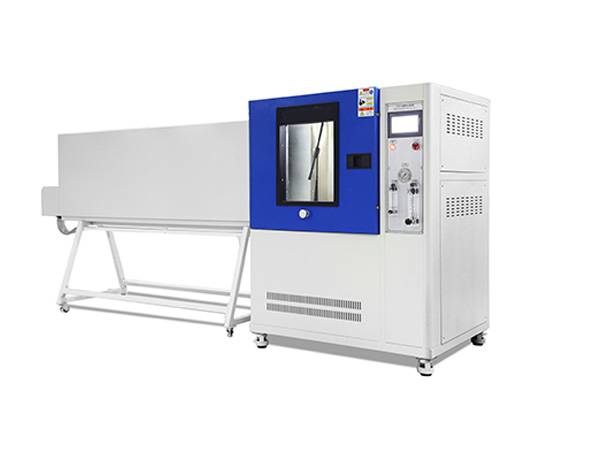

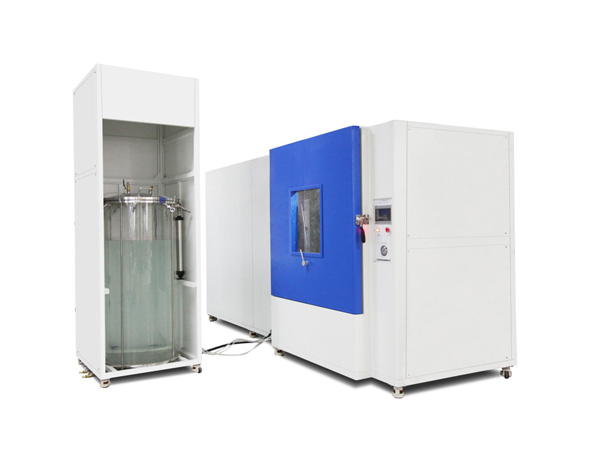

XHF-50Q Water Protection Test Chamber
Product Category：Environmental Testing Equipments
IP Water Protection Test Chamber can simulate raining weather condition so as to test products water resistance and waterproof performance.
Suitable for carrying out waterIPX1,IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, IPX8, IPX9, IPX9K test.
IEC 62052, EN60529, GB/T 4208, DIN40050-9, ISO26053, IEC60529...etc
The core control system adopt 7 Inch big Color touch screen + Japan Panasonic PLC Control, electrical components adopt LS, Omron..etc imported brand.
Wiring process meets the requirements of national standards, the layout of the board is reasonable, wiring is firm, clearly marked.
Basic Parameter | |
Size of test chamber | 1000mmx1050mx1200mm (length*depth*height) |
External Size | 4900mmx1550mmx2150mm (length*depth*height) |
Diameter of turntable | 400mm |
Max load of turntable | 50KG |
Turntable lift height | 500-850 mm |
Tilt of turntable | 0°or15° (Horizontal Direction) |
Speed of turntable | 1 -5r/min（accurate adjustment） |
Method of turntable rotation | Constant forward/forward and reverse alternative/period rotation (touch screen control) |
Method of flow volume adjustment | Flow sensor for adjustment |
Testing time | 0-999 min |
Machine weight | 300kg |
Some Technical Parameter of IPX12 | |
Area of rain panel | 600x600mm |
Dimension of IPX12 spray nozzle | Diameter :0.4mm |
Distance between spray nozzle | 20x20 mm |
Rainfall | IPX1=1mm/min；IPX2=3mm/min |
Lift of rain panel | No lift (fixed) |
Some Technical Parameter of IPX34 | |
Radius of swing pipe | R400mm |
Flow of R400 swing pipe | IPX3=1.1L/min；IPX4=1.8L/min |
Dimension of spray nozzle | 0.4mm |
Distance between spray nozzle | 50mm |
Inner diameter of swing pipe | 15mm |
Swing angle | 120º（IPX3, 350º（IPX4）or self definiton |
Swing speed | 240° forward and back 4S, 720°forward and back12S（accurate）or self definiton |
Some Technical Parameter of IPX56 | |
IPX5 spray nozzle | 6.3mm |
IPX6 spray nozzle | 12.5mm |
IPX5 spray volume | 12.5±0.625 |
IPX6 spray volume | 100±5L/min |
Water Pressure（Mpa） | According to requirement to adjust |
Spray distance | 2.5 meter（Distance between spray nozzle to center of turntable) |
Spray gun | Vertical Swing, Swing Height and Speed is controlled by touch screen |
Some Technical Parameter of IPX78 | |
Device innner dimension | Diameter 600mm, Height:1200mm |
Thickness of wall | 15mm |
Flange thickness | 15mm |
Flange material | Stainless Steel |
Water test depth | 1-10 meters |
Pressure adjust range | 0.01-0.1Mpa |
Protection | Safety Valve, Water Leakage Protection |
Some Technical Parameter of IPX9-9K | |
Nozzle holder folding method | Manual or Auto (Touch screen operation) |
Spray water flow | 14-16L |
Spray water pressure | 8000-10000Kpa |
Spray Pressure Calibration | 0.9-1.2N Force calibration system (touch screen operation) |
Water supply temperature | Room temperature - 85℃ touch screen set |
Spray nozzle adjustment | 100-200 (manual adjustment) |
