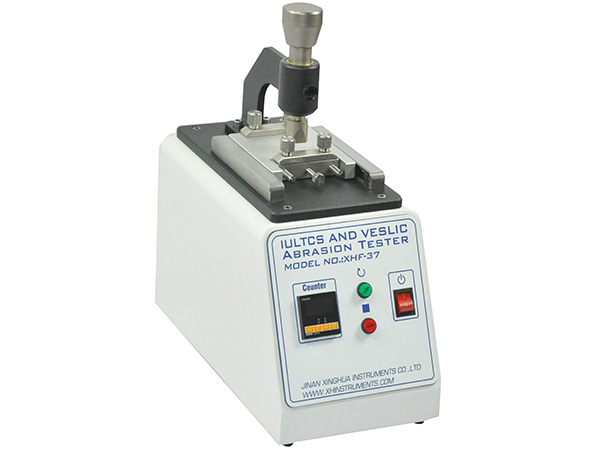

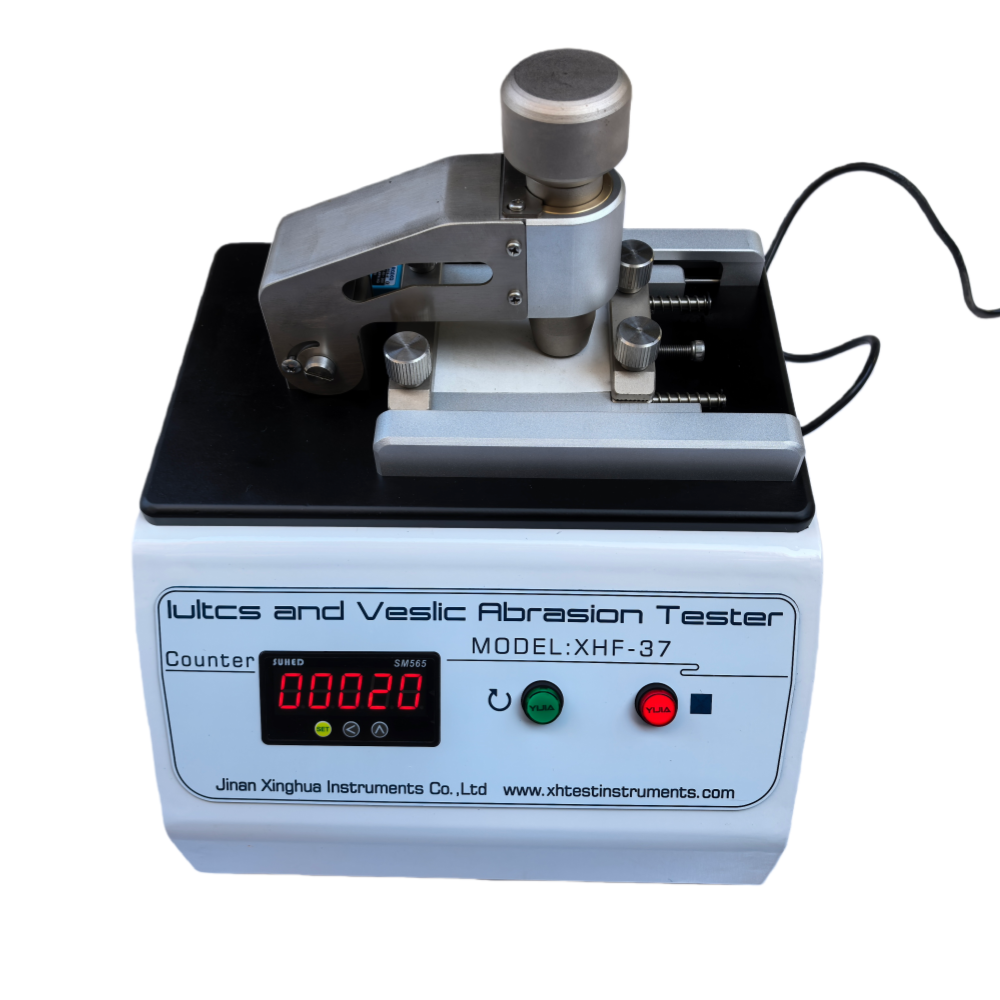

XHF-37 Iultcs and Veslic Abrasion Tester

Product Category：Abrasion Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-37 Iultcs and Veslic Abrasion Tester: doing test should be in required pressure, and go to reciprocating abrasion to the surfaces of dyeing leather with prescriptive felt, test required times. There are dry and wet two type of test.

Test Standards

ISO-11640, SATRA TM173, IUF 450, DIN 4843, EN ISO 20344 (7.3)

Technical Parameter

Sample Size	120mm×20mm
Area of testing head	15mm×15mm
Movement speed	(40 ± 2) times / min.
Load Piece	500g±10g
Total weight for weights+ finger	1000g±35g
Rubbing Track	35-40mm
Specimen Stretch	Max 20%
Counter	LED 0-9999, Auto Stop
Clamp space	Min 80mm
Dimension	220×410×450mm
Weight	28kg
Power Supply	AC 110V/220V ,50/60Hz
